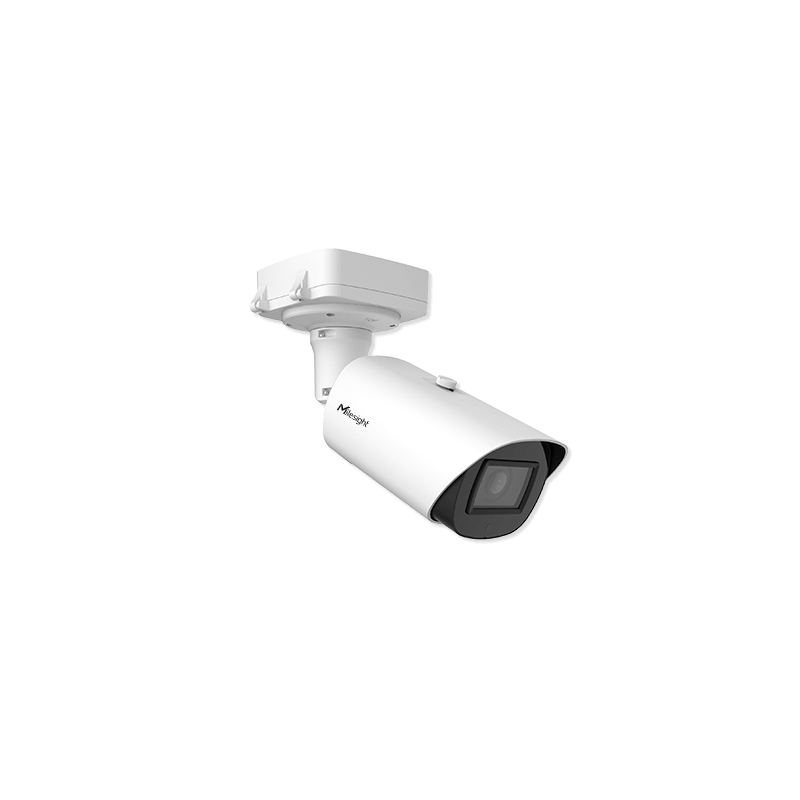

MS-C8266-FPE Bullet Pro Plus 4K, AI, Sensor 1/1.8",Lente Motorizada
- Bullet de la serie PRO PLUS con Inteligencia Artificial. AF Motorizado. Sensor 1/1.8"
- 4K · AI · 3 en 1 Super WDR Pro · 0.009Lux Ultra Low-light · Mapa de calor · IP67 · IK10 · Smart IR II · Distancia IR de 65 m · Hasta 30 fps · Lente 3.6~10.0mm · Cumple con NDAA
- Análisis de video con IA.
- Conteo de personas
- Mapa de calor avanzado
- Última tecnología LED IR
- Diseño único para una fácil instalación
- Soporte SIP/VoIP
* Admite PoE; tarjeta SD, hasta 256G; diseño de 3 ejes; Protección contra sobretensiones 4KV,
* Compatible con H.265+/H.265/H.264+/H.264
* Gestión de cables integrada
* Puerto múltiple: E/S de alarma, E/S de audio, DC 12V
* Análisis de contenido de video, conteo de personas, mapa de calor
Opcional:
* Lente 7-22mm (100m IR Distancia) : (Solo para C29XX & C53XX)
* High Frame Rate: (Serie -T: 2MP@90fps)
* P-Iris: (Excepto objetivo 3-10.5mm)
Análisis de video con IA
La serie de cámaras con IA de Milesight puede filtrar objetos de forma inteligente para centrarse en la detección de personas y vehículos en múltiples eventos, como la entrada a la región, la salida de la región, el merodeo, la detección avanzada de movimiento, etc.
| Camera | Name | 4K AI Motorized Pro Bullet Plus Network Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS | |
| Min. Illumination | Color: 0.006Lux @F1.2, Color: 0.009Lux @F1.4, B/W: 0Lux with IR on | |
| WDR | 120dB Super WDR | |
| Shutter Time | 1/100000s∼1s | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| IR Distance | Up to 65m | |
| S/N | >55dB | |
| Lens | Lens | Motorized 3.6~10mm@F1.4, P-Iris(Optional) |
| Field of View | H116°~H48°/D134°~D55°/V65°~V27° | |
| Mount | Φ14 | |
| Focus Control | Auto/Manual | |
| Iris Control | Auto/Manual (Optional for I Series) | |
| Video | Max. Image Resolution | 3840x2160 |
| Frame Rate | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
|
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
|
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
|
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) | |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) | |
| ROI | Up to 8 areas | |
| Image Settings | Saturation/Brightness/Contrast/Sharpness | |
| Web Access | Support IE/Firefox/Chrome/Safari Browser | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | Support | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 | |
| Alarm I/O | 1/1 | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Intelligent Analytics | Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection | Detect and capture faces, get real-time snapshots | |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc | |
| System Compatibility | ONVIF Profile G & Q & S & T, API | |
| General | Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) | |
| Power Supply | PoE (802.3af) / DC 12V±10% | |
| Power Consumption | 8W MAX, 17W MAX(With IR on) | |
| Weather Proof | Up to IP67-rated for weather-resistant performance | |
| Housing | Vandal-proof IK10-rated metal housing | |
| Surge Protection | 4KV | |
| Dimensions | 301mmX108mmX126mm | |
| Weight | 1630g | |
| Warranty | 3/5 Years |
MS-C8266-FPE
Ficha técnica
- Lentes
- 3.6~10.0mm
- Distancia IR
- 65 mts
- Estructura
- Bullet
- Resolución
- 8Mp 3840x2160
- Bullet de la serie PRO PLUS con Inteligencia Artificial. AF Motorizado. Sensor 1/1.8"
- 4K · AI · 3 en 1 Super WDR Pro · 0.009Lux Ultra Low-light · Mapa de calor · IP67 · IK10 · Smart IR II · Distancia IR de 65 m · Hasta 30 fps · Lente 3.6~10.0mm · Cumple con NDAA
- Análisis de video con IA.
- Conteo de personas
- Mapa de calor avanzado
- Última tecnología LED IR
- Diseño único para una fácil instalación
- Soporte SIP/VoIP
* Admite PoE; tarjeta SD, hasta 256G; diseño de 3 ejes; Protección contra sobretensiones 4KV,
* Compatible con H.265+/H.265/H.264+/H.264
* Gestión de cables integrada
* Puerto múltiple: E/S de alarma, E/S de audio, DC 12V
* Análisis de contenido de video, conteo de personas, mapa de calor
Opcional:
* Lente 7-22mm (100m IR Distancia) : (Solo para C29XX & C53XX)
* High Frame Rate: (Serie -T: 2MP@90fps)
* P-Iris: (Excepto objetivo 3-10.5mm)
