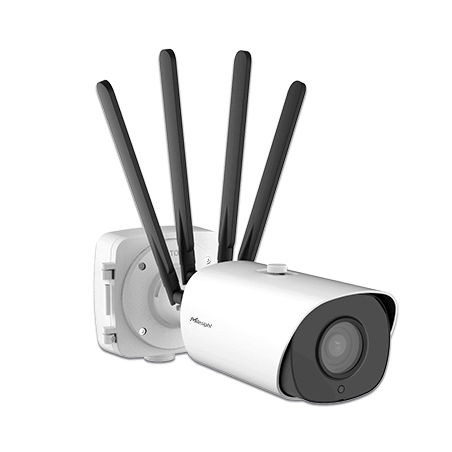

MS-C8266-X4GPC 4K-5G-AI

Cámara 5G con Inteligencia Artificial

4K · IA · 5G · Zoom óptico 4X · Super WDR Pro 3 en 1 · Sensor de luz estelar STARVIS de 1/1,8" · Luz ultrabaja de 0,002 lux · 30 fps · IP67 · Protección contra sobretensiones de 4KV · Smart IR II · IR de 180 m Distancia · P2P · Lente 8.0~32mm.

* Admite 5G/4G/3G, P2P, Nano SIM

* Admite PoE, tarjeta SD, hasta 256G; Diseño de 3 ejes

* Compatible con H.265+/H.265/H.264+/H.264

* Gestión de cables integrada

* Puerto múltiple: E/S de alarma, E/S de audio, DC 12V

* Análisis de contenido de video, conteo de personas, detección de rostros, mapa de calor

* IP67 solo para el cuerpo de la cámara

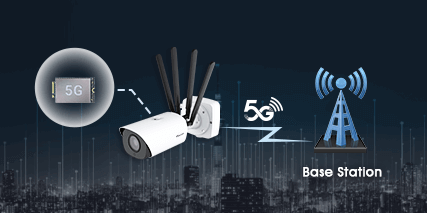

5G de alta movilidad

Aprovechando la alta potencia de transmisión de 5G, la cámara Milesight 5G Pro Bullet Plus puede transmitir o recibir señales de video a través de Internet de forma inalámbrica simplemente encendiendo la cámara e insertando una tarjeta SIM, eliminando la necesidad de conexiones complicadas de cable y fibra. En comparación con los enrutadores complementarios, el módulo 5G incorporado mejora la movilidad de su implementación y brinda una solución de seguridad confiable.

Camera Name 4K 5G AI 4X Pro Bullet Plus Network Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Min. Illumination Color: 0.006Lux @F1.2, Color: 0.009Lux @F1.6, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 180m
S/N >55dB
Lens Lens 8~32mm, 4X Optical Zoom
Field of View H44°~H13°/D51°~D15°/V25°~V7°
Mount Φ14
Focus Control Auto/Manual
Aperture F1.6-F1.7
Iris Control Auto
Video Max. Image Resolution 3840x2160
Frame Rate 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1
Mobile Communication Parameter Wireless Communication Support 5G/4G/3G
Frequency Bands 5G NR: n1/n2/n3/n5/n7/n8/n12/n20/n28/n41/n66/n71/n77/n78/n79
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21(TBD)/ B25/B26/B28/B29/B30/B32/B66/B71
LTE-TDD: B34/B38/39/B40/B41/B42/B48
LAA: B46
WCDMA: B1/B2/B3/B4/B5/B6/B8/B19
Wireless Transmission Speed SA: DL 3.3Gbps; UL 250Mbps
NSA: DL 3.4Gbps; UL 200Mbps
LTE: DL 2.0Gbps; UL 150Mbps
WCDMA: DL 42Mbps; UL 5.76Mbps
SIM Card Nano SIM
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection Detect and capture faces, get real-time snapshots
People Counting& Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3at) / DC 12V±10%
Power Consumption 8W MAX, 17W MAX (With IR on)
Surge Protection 4KV
Weather Proof Up to IP67-rated for Weather-resistant Performance (Only for camera body)
Dimensions 320mmX134mmX126mm, 320mmX134mmX292mm (With 5G Antennas)
Weight 1608g
Warranty 3/5 Years
MS-C8266-X4GPC

Ficha técnica

Lentes
8~32mm
Distancia IR
180 mts
Estructura
Bullet
Resolución
8Mp 3840x2160

Descargas

Ficha Técnica

Miesight-5G-AI-4X&12X-Pro Bullet Plus-2&8Mp

Descargas (1.66MB)
