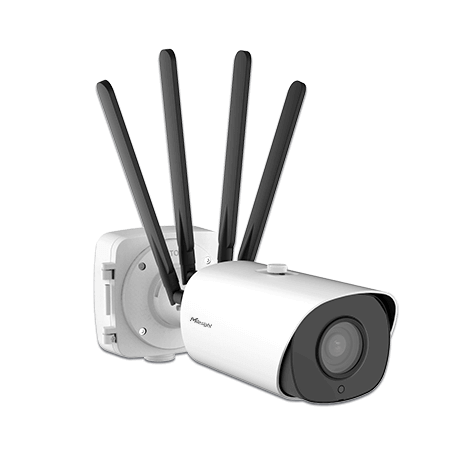

MS-C2966-X12RGPC 2MP-5G-12X-AI
Cámara 5G con Inteligencia Artificial
2MP · IA · 5G · Zoom óptico 12X · Super WDR Pro 3 en 1 · Sensor de luz estelar STARVIS de 1/2,8" · Luz ultrabaja de 0,002 lux · 100 fps · IP67 · Protección contra sobretensiones de 4KV · Smart IR II · IR de 180 m Distancia · P2P · Lente 5.3~64mm.
* Admite 5G/4G/3G, P2P, Nano SIM
* Admite PoE, tarjeta SD, hasta 256G; Diseño de 3 ejes
* Compatible con H.265+/H.265/H.264+/H.264
* Gestión de cables integrada
* Puerto múltiple: E/S de alarma, E/S de audio, DC 12V
* Análisis de contenido de video, conteo de personas, detección de rostros, mapa de calor
* IP67 solo para el cuerpo de la cámara
Opcional:
* High Frame Rate: Serie -T: 2MP@100fps + Super WDR Pro)
5G de alta movilidad
Aprovechando la alta potencia de transmisión de 5G, la cámara Milesight 5G Pro Bullet Plus puede transmitir o recibir señales de video a través de Internet de forma inalámbrica simplemente encendiendo la cámara e insertando una tarjeta SIM, eliminando la necesidad de conexiones complicadas de cable y fibra. En comparación con los enrutadores complementarios, el módulo 5G incorporado mejora la movilidad de su implementación y brinda una solución de seguridad confiable.
| Camera | Name | 2MP 5G AI 12X Pro Bullet Plus Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS | |
| Min. Illumination | Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.6, B/W: 0Lux with IR on | |
| WDR | 140dB Super WDR (Super WDR Pro is optional for T Series) | |
| Shutter Time | 1/100000s∼1s | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| IR Distance | Up to 180m | |
| S/N | >55dB | |
| Lens | Lens | 5.3~64mm, 12X Optical Zoom |
| Field of View | H61°~H5°/D69°~D5°/V36°~V2° | |
| Mount | Φ14 | |
| Focus Control | Auto/Manual | |
| Aperture | F1.6~F2.8 | |
| Iris Control | Auto | |
| Video | Max. Image Resolution | 1920x1080 |
| Frame Rate | 60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
|
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
|
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
|
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) | |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) | |
| ROI | Up to 8 areas | |
| Image Settings | Saturation/Brightness/Contrast/Sharpness | |
| Web Access | Support IE/Firefox/Chrome/Safari Browser | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | Support | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 | |
| Alarm I/O | 1/1 | |
| Mobile Communication Parameter | Wireless Communication | Support 5G/4G/3G |
| Frequency Bands | 5G NR: n1/n2/n3/n5/n7/n8/n12/n20/n28/n41/n66/n71/n77/n78/n79 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21(TBD)/ B25/B26/B28/B29/B30/B32/B66/B71 LTE-TDD: B34/B38/39/B40/B41/B42/B48 LAA: B46 WCDMA: B1/B2/B3/B4/B5/B6/B8/B19 |
|
| Wireless Transmission Speed | SA: DL 3.3Gbps; UL 250Mbps NSA: DL 3.4Gbps; UL 200Mbps LTE: DL 2.0Gbps; UL 150Mbps WCDMA: DL 42Mbps; UL 5.76Mbps |
|
| SIM Card | Nano SIM | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Intelligent Analytics | Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection | Detect and capture faces, get real-time snapshots | |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc | |
| System Compatibility | ONVIF Profile G & Q & S & T, API | |
| General | Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) | |
| Power Supply | PoE (802.3at) / DC 12V±10% | |
| Power Consumption | 8W MAX, 16W MAX (With IR on) | |
| Surge Protection | 4KV | |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance (Only for camera body) | |
| Dimensions | 320mmX134mmX126mm, 320mmX134mmX292mm (With 5G Antennas) | |
| Weight | 1608g | |
| Warranty | 3/5 Years |
MS-C2966-X12RGPC
Ficha técnica
- Lentes
- 5.3~64mm
- Distancia IR
- 180 mts
- Estructura
- Bullet
- Resolución
- 2Mp 1920x1080
