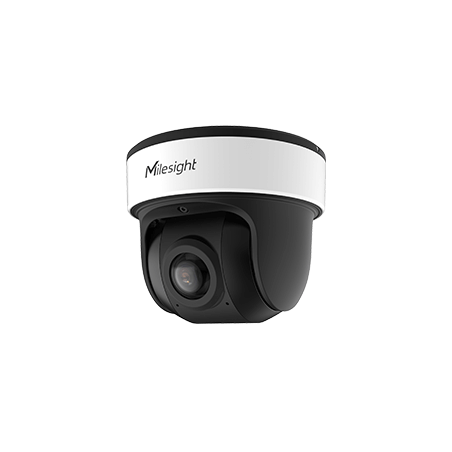

MS-C5376-PE DOMO PANORÁMICO 180º 5MP

Mini Domo Panorámico 180º, con Inteligencia Artificial

IA · Vista panorámica de 180° · 5Mp · 120dB Super WDR · 0.005Lux Starlight · Tecnología IR panorámica · Cobertura IR de 180° · Mapa de calor · IP67 e IK10 · Micrófono incorporado · Caja de conexiones integrada · Lente 1.68mm · IR 15 mts · NDAA

Análisis de video con IA.
Conteo de personas
Detección de caras
Mapa de calor avanzado
Última tecnología LED IR
Diseño único para una fácil instalación
Soporte SIP/VoIP

Vista panorámica de 180°

La cámara IP minidomo panorámica de 180° AI de Milesight es perfecta para el monitoreo de áreas ultra amplias, especialmente porque puede fusionarse perfectamente con el entorno. Captura una cobertura horizontal de 180° y una vertical de 95°, logrando una visualización de ángulo extra amplio con un solo sensor.

Camera	Name	4K AI 180° Panoramic Mini Dome Network Camera
	Image Sensor	1/2.8" Progressive Scan CMOS
	Min. Illumination	Color: 0.01Lux @F1.2, Color: 0.012Lux @F2.0, B/W: 0Lux with IR on
	WDR	120dB Super WDR
	Lens	1.68mm @F2.0
	Mount	M12
	Field of View	H180°/V86°
	Shutter Time	1/100000s∼1s
	Day/Night Mode	Day/Night/Auto/Customize/Schedule
	IR Distance	180° IR Illumination Up to 15m
	S/N	>55dB
	Video	Max. Image Resolution	3840x2160
Primary Stream		60Hz: 25fps@(3840x2160), 30fps@(3456x1936, 3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720) 50Hz: 25fps@(3840x2160), 25fps@(3456x1936, 3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720)
Secondary Stream		60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream		60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240)
Video Compression		H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate		16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking		Up to 8 areas
ROI		Up to 8 areas
Image Settings		Saturation/Brightness/Contrast/Sharpness
Web Access		Support IE/Firefox/Chrome/Safari Browser
Interface		Ethernet	1*RJ45 10M/100M Ethernet Port
	Audio Interface	Built-in Microphone
	Network	Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols		IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio		Audio Compression	G.711/AAC/G.722/G.726
	Audio Sampling Rate	8/16/32/44.1/48KHz
	Audio Bit Rate	16~256kbps
	Two-way Audio	N/A
	Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& Report		Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System		Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
	SIP/VoIP Support	Yes, Voice&Video-over-IP
	Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
	System Compatibility	ONVIF Profile G & Q & S & T, API
	General	Working Temperature	-40℃∼60℃
Working Humidity		0∼90%(Non-condensing)
Power Supply		PoE(802.3af)/DC 12V±10%
Power Consumption		6W MAX, 9W MAX (With IR on)
Weather Proof		Up to IP67-rated for Weather-resistant Performance
Housing		Vandal-proof IK10-rated metal housing
Dimensions		Φ127mmX107mm
Weight		853g
Warranty		3/5 Years

Referencia MS-C5376-PE

Ficha técnica

Distancia IR: 15 mts
Estructura: Mini Domo
Resolución: 5Mp 2592x1944

Descargas

Ficha Técnica

Mini Domo Panorámico 180

Descargas (1.19MB)
