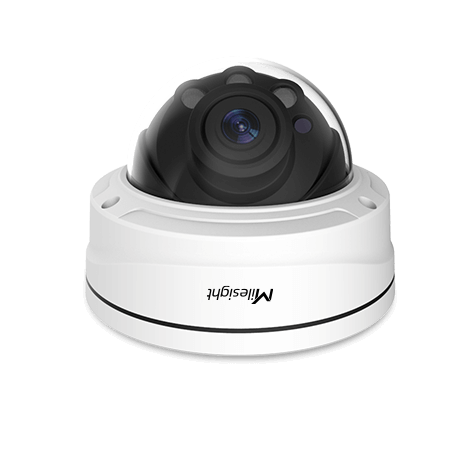

MS-C5372-FPE DOMO PRO CON AF MOTORIZADO 5Mp

Domo de la serie PRO con Inteligencia Artificial. AF Motorizado · Sensor de 1/2.8"
5MP · AI · 3 en 1 Super WDR Pro · 0.008Lux Ultra Low-light · Mapa de calor · IP67 · IK10 · Smart IR II · Distancia IR de 50 m · 30 fps · Sensor de luz estelar STARVIS · Lente 2.7~13.5mm · NDAA

Análisis de video con IA.
Conteo de personas
Detección de caras
Mapa de calor avanzado
Última tecnología LED IR
Diseño único para una fácil instalación
Soporte SIP/VoIP

IR inteligente II

La tecnología de LED IR se actualizó para proporcionar videos con un rango de visualización de hasta 50 m (90 m). Dos LED en la parte superior funcionan como luz alta, mientras que los otros dos en la parte inferior funcionan como luz baja para una mejor claridad y calidad de imagen, independientemente de la distancia del objeto. Además, el brillo de las luces bajas y altas se puede ajustar de forma manual o automática en función de la relación de zoom.

Camera	Name	5MP AI Motorized Pro Dome Network Camera
	Image Sensor	1/2.8" Progressive Scan CMOS
	Min. Illumination	Color: 0.005Lux @F1.2, Color: 0.008Lux @F1.4, B/W: 0Lux with IR on
	WDR	120dB Super WDR
	Shutter Time	1/100000s∼1s
	Day/Night Mode	Day/Night/Auto/Customize/Schedule
	IR Distance	Up to 50m(3.0~10.5mm/2.7~13.5mm), Up to 90m(7~22mm)
	S/N	>55dB
	Lens	Lens	Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4, P-Iris(Optional)
Field of View		H89°~H30°/D111°~D37° /V66°~V22° (2.7~13.5mm), H90°~H31°/ D114°~D38° / V67°~V23°(3.0~10.5mm), H37°~H15°/D47°~D19° /V28°~V11° (7~22mm)
Mount		Φ14
Focus Control		Auto/Manual
Iris Control(Optional for I Series)		Auto/Manual
Video		Max. Image Resolution	2592x1944
	Primary Stream	60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
	Secondary Stream	60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
	Tertiary Stream	60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
	Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
	Video Bit Rate	16Kbps∼16Mbps (CBR/VBR Adjustable)
	Privacy Masking	Up to 24 areas
	ROI	Up to 8 areas
	Image Settings	Saturation/Brightness/Contrast/Sharpness
	Interface	Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O		Built-in Microphone and 1 Audio Output interface
Alarm I/O		1/1
Network		Network Storage	NAS(Support NFS, SMB/CIFS), ANR
	Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
	Audio	Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate		8/16/32/44.1/48KHz
Audio Bit Rate		16~256kbps
Two-way Audio		Support
Intelligent Analytics		Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
	People Counting& Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
	System	Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function		BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support		Yes, Voice&Video-over-IP
Event Trigger		Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action		FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System Compatibility		ONVIF Profile G & Q & S & T, API
General		Working Temperature	-40℃∼60℃
	Working Humidity	0∼90%(Non-condensing)
	Power Supply	PoE(802.3af)/DC 12V±10%
	Power Consumption	8W MAX, 11W MAX (With IR on)
	Weather Proof	Up to IP67-rated for Weather-resistant Performance
	Housing	Vandal-proof IK10-rated Metal Housing
	Weight	1100g
	Dimensions	Φ143mmX108.4mm
	Warranty	3/5 Years

Referencia MS-C5372-FPE

Ficha técnica

Lentes: 2.7~13.5mm
Distancia IR: 50 mts
Estructura: Domo
Resolución: 5Mp 2592x1944
