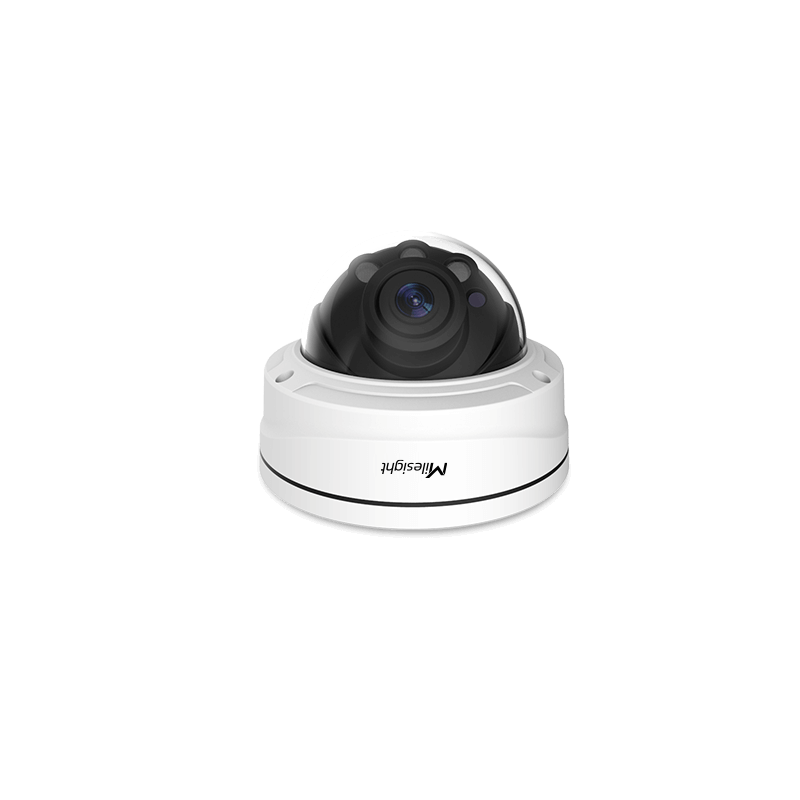

MS-C2872-RFPE DOMO PRO CON AF MOTORIZADO SENSOR 1/2"
- Domo de la serie PRO con Inteligencia Artificial. AF Motorizado · Sensor de 1/2"
- 2MP · AI · 3 en 1 Super WDR Pro · 0.002Lux Ultra Low-light · Mapa de calor · IP67 · IK10 · Smart IR II · Distancia IR de 50 m · Hasta 90 fps · Sensor de luz estelar STARVIS · Lente 3.6~10.0mm · NDAA
- Análisis de video con IA.
- Conteo de personas
- Detección de caras
- Mapa de calor avanzado
- Última tecnología LED IR
- Diseño único para una fácil instalación
- Soporte SIP/VoIP
IR inteligente II
La tecnología de LED IR se actualizó para proporcionar videos con un rango de visualización de hasta 50 m (90 m). Dos LED en la parte superior funcionan como luz alta, mientras que los otros dos en la parte inferior funcionan como luz baja para una mejor claridad y calidad de imagen, independientemente de la distancia del objeto. Además, el brillo de las luces bajas y altas se puede ajustar de forma manual o automática en función de la relación de zoom.
| Camera | Name | 2MP AI Motorized Pro Dome Network Camera |
| Min. Illumination | Color: 0.001Lux @F1.2, Color: 0.002Lux @F1.4, B/W: 0Lux with IR on | |
| WDR | 120dB Super WDR | |
| Shutter Time | 1/100000s∼1s | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| IR Distance | Up to 50m | |
| S/N | >55dB | |
| Image Sensor | 1/2" Progressive Scan CMOS | |
| Lens | Lens | Motorized 3.6~10mm@F1.4, P-Iris(Optional) |
| Field of View | H96°~H42°/D111°~D48°/V55°~V23° | |
| Mount | Φ14 | |
| Focus Control | Auto/Manual | |
| Iris Control(Optional for I Series) | Auto/Manual | |
| Video | Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
|
| Secondary Stream | 60Hz: 90fps@(704x576)(Optional for T Series), 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 90fps@(704x576)(Optional for T Series), 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
|
| Tertiary Stream | 60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) |
|
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) | |
| Privacy Masking | Up to 24 areas | |
| ROI | Up to 8 areas | |
| Image Settings | Saturation/Brightness/Contrast/Sharpness | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone and 1 Audio Output interface | |
| Alarm I/O | 1/1 | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | Support | |
| Intelligent Analytics | Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. | |
| System Compatibility | ONVIF Profile G & Q & S & T, API | |
| General | Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) | |
| Power Supply | PoE(802.3af)/DC 12V±10% | |
| Power Consumption | 9W MAX, 11W MAX (With IR on) | |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance | |
| Housing | Vandal-proof IK10-rated Metal Housing | |
| Weight | 1100g | |
| Dimensions | Φ143mmX108.4mm | |
| Warranty | 3/5 Years |
MS-C2872-RFPE
Ficha técnica
- Lentes
- 3.6~10.0mm
- Distancia IR
- 50 mts
- Estructura
- Domo
- Resolución
- 2Mp 1920x1080
- Domo de la serie PRO con Inteligencia Artificial. AF Motorizado · Sensor de 1/2"
- 2MP · AI · 3 en 1 Super WDR Pro · 0.002Lux Ultra Low-light · Mapa de calor · IP67 · IK10 · Smart IR II · Distancia IR de 50 m · Hasta 90 fps · Sensor de luz estelar STARVIS · Lente 3.6~10.0mm · NDAA
- Análisis de video con IA.
- Conteo de personas
- Detección de caras
- Mapa de calor avanzado
- Última tecnología LED IR
- Diseño único para una fácil instalación
- Soporte SIP/VoIP
