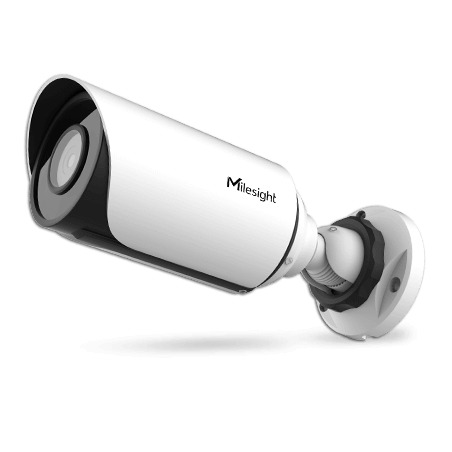

MS-C8164-FPE MINIBULLET, AF MOTORIZADO, 4K

Cámara mini bullet con Inteligencia Artificial.
4K · AI · 120dB Super WDR · Lente motorizada 2.7~13.5mm · 0.012Lux Starlight · Distancia IR de 50 m · Tecnología Smart IR II · Mapa de calor · IP67 e IK10 · Diseño mecánico de 3 ejes · Micrófono avanzado incorporado · Fácil instalación y ajuste ·
Análisis de video con IA.
Conteo de personas
Detección de caras
Mapa de calor avanzado
Última tecnología LED IR
Diseño único para una fácil instalación
Soporte SIP/VoIP
Cumple estándar NDAA

Lente motorizada avanzada

Con una lente motorizada flexible (2,7 ~ 13,5 mm), la cámara puede capturar sujetos distantes en lugar de fijarse en la escena específica sin flexibilidad. La lente ultra gran angular brinda un campo de visión más amplio para ampliar los horizontes, dejando atrás las experiencias de visión estrecha.

Camera	Name	4K AI Motorized Bullet Network Camera
	Image Sensor	1/2.8" Progressive Scan CMOS
	Min. Illumination	Color: 0.01Lux @F1.2, Color: 0.012Lux @F1.4, B/W: 0Lux with IR on
	WDR	120dB Super WDR
	Shutter Time	1/100000s∼1s
	Day/Night Mode	Day/Night/Auto/Customize/Schedule
	IR Distance	Up to 50m
	S/N	>55dB
	Lens	Lens	Motorized 2.7∼13.5mm @F1.4, P-Iris(Optional)
Field of View		H107°∼H33°/D125°∼D37°/V58°∼V18°
Mount		Φ14
Focus Control		Auto/Manual
Iris Control(Optional for I Series)		Auto/Manual
Video		Max. Image Resolution	3840x2160
	Frame Rate	60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
	Secondary Stream	60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
	Tertiary Stream	60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
	Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
	Video Bit Rate	16Kbps∼16Mbps (CBR/VBR adjustable)
	Privacy Masking	Up to 24 areas
	ROI	Up to 8 areas
	Image Settings	Saturation/Brightness/Contrast/Sharpness
	Interface	Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O		1/1 (Multi-interface Version)
Alarm I/O		1/1 (Multi-interface Version)
Network		Network Storage	NAS(Support NFS, SMB/CIFS), ANR
	Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
	Audio	Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate		8/16/32/44.1/48KHz
Audio Bit Rate		16~256kbps
Two-way Audio		Support
Intelligent Analytics		Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
	People Counting& Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
	System	Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function		BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support		Yes, Voice&Video-over-IP
Event Trigger		Motion Detection, Network Disconnection, etc.
Event Action		FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility		ONVIF Profile G & Q & S & T, API
General		Working Temperature	-40℃∼60℃
	Working Humidity	0∼90%(Non-condensing)
	Power Supply	PoE(802.3af)/DC 12V±10%
	Power Consumption	9W MAX, 11W MAX (With IR on)
	Housing	Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
	Weight	825g
	Dimensions	Φ76mmX239.5mm
	Warranty	3/5 Years

Referencia MS-C8164-FPE

Ficha técnica

Lentes: 2.7~13.5mm
Distancia IR: 50 mts
Estructura: Mini Bullet
Resolución: 8Mp 3840x2160

Descargas

Ficha Técnica

Milesight-AI-Motorizada-Bullet-IP-NDAA-Datasheet

Descargas (1.35MB)
