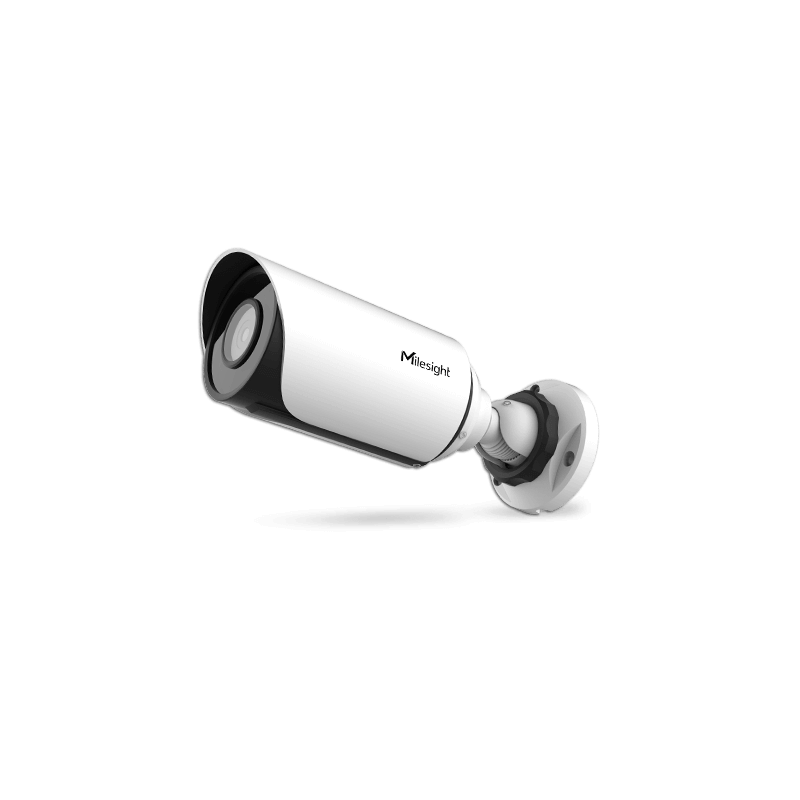

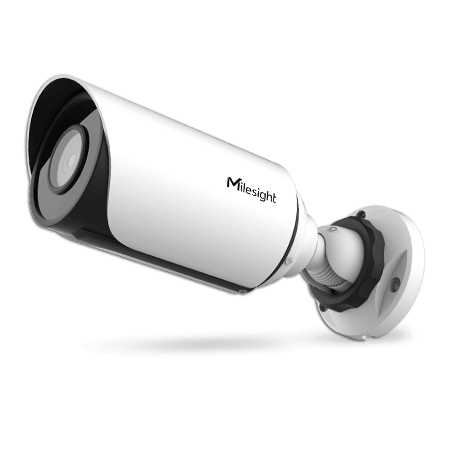

MS-C2964-RFPE MINIBULLET, AF MOTORIZADO, 2MP

  • Cámara mini bullet con Inteligencia Artificial.
  • 2Mp · AI · 120dB Super WDR · Lente motorizada 2.7~13.5mm · 0.005Lux Starlight · Distancia IR de 50 m · Tecnología Smart IR II · Mapa de calor · IP67 e IK10 · Diseño mecánico de 3 ejes · Micrófono avanzado incorporado  · Fácil instalación y ajuste ·
  • Análisis de video con IA.
  • Conteo de personas
  • Detección de caras
  • Mapa de calor avanzado
  • Última tecnología LED IR
  • Diseño único para una fácil instalación
  • Soporte SIP/VoIP
  • Cumple estándar NDAA

Lente motorizada avanzada

Con una lente motorizada flexible (2,7 ~ 13,5 mm), la cámara puede capturar sujetos distantes en lugar de fijarse en la escena específica sin flexibilidad. La lente ultra gran angular brinda un campo de visión más amplio para ampliar los horizontes, dejando atrás las experiencias de visión estrecha.

Camera Name 2MP AI Motorized Bullet Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 50m
S/N >55dB
Lens Lens Motorized 2.7∼13.5mm/3.0∼10.5mm/7∼22mm @F1.4, P-Iris(Optional)
Field of View H111°∼H34°/D130°∼D39°/V60°∼V19°(2.7∼13.5mm), H100°∼H33°/D115°∼D38°/V54°∼V18°(3∼10.5mm), H42°∼H17°/D48°∼D19°/V24°∼V9°(7∼22mm)
Mount Φ14
Focus Control Auto/Manual
Iris Control(Optional for I Series) Auto/Manual
Video Max. Image Resolution 1920x1080
Frame Rate 60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1 (Multi-interface Version)
Alarm I/O 1/1 (Multi-interface Version)
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af)/DC 12V±10%
Power Consumption 8W MAX, 10W MAX (With IR on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Weight 825g
Dimensions Φ76mmX239.5mm
Warranty 3/5 Years
MS-C2964-RFPE

Ficha técnica

Lentes
2.7~13.5mm
Distancia IR
50 mts
Estructura
Mini Bullet
Resolución
2Mp 1920x1080

Descargas

Ficha Técnica

Milesight-AI-Motorizada-Bullet-IP-NDAA-Datasheet

Descargas (1.35MB)
