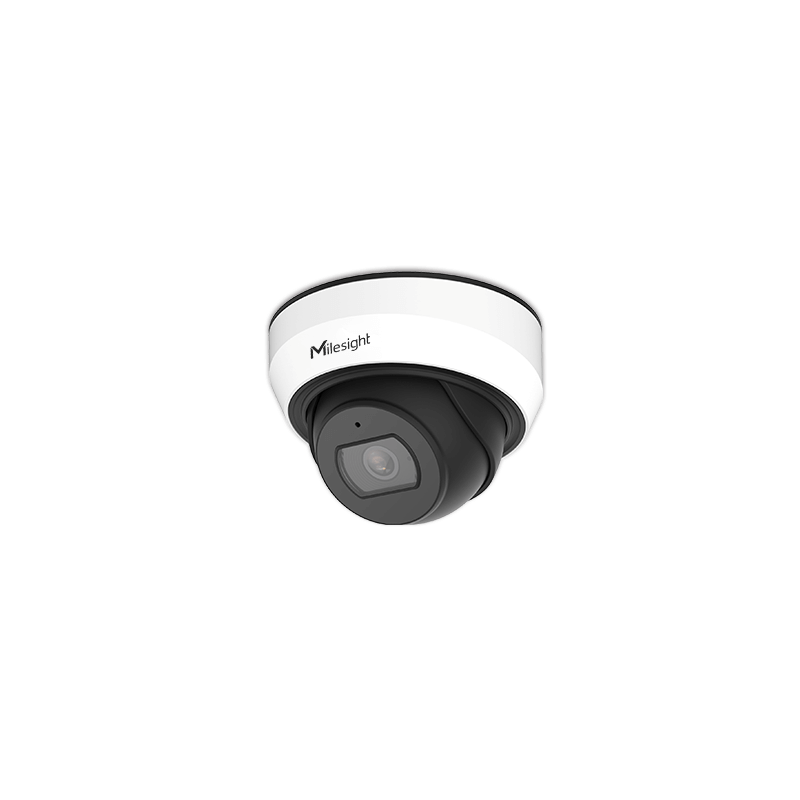

MS-C5375-FPD MINIDOMO AF MOTORIZADO

Cámara mini domo con Inteligencia Artificial. AF motorizado
5Mp · AI · 120dB Super WDR · 0.008Lux Starlight · Distancia IR de 50 m · Lente 2.7~13.5mm ·Tecnología Smart IR II · Mapa de calor · IP67 e IK10 · Diseño mecánico de 3 ejes · Micrófono avanzado incorporado · Fácil instalación y ajuste · 30FPS
Análisis de video con IA.
Conteo de personas
Detección de caras
Mapa de calor avanzado
Última tecnología LED IR
Diseño único para una fácil instalación
Soporte SIP/VoIP

Conteo de personas

El conteo de personas de alta precisión y en tiempo real basado en el algoritmo de IA, con informes estadísticos para un análisis más detallado, ayuda a tomar decisiones rápidas sobre la gestión de la seguridad y aumenta la eficiencia operativa del negocio.

Camera	Name	5MP AI AF Motorized Dome Network Camera
	Image Sensor	1/2.8" Progressive Scan CMOS
	Min. Illumination	Color: 0.005Lux @F1.2, Color: 0.008Lux @F1.8, B/W: 0Lux with IR on
	WDR	120dB Super WDR
	Shutter Time	1/100000s∼1s
	Day/Night Mode	Day/Night/Auto/Customize/Schedule
	IR Distance	Up to 50m
	S/N	>55dB
	Lens	Lens	2.7~13.5mm,
Field of View		H111°∼H48°/D130°∼D55°/V60°∼V27°
Focus Control		Auto/Manual
Minimum Working Distance		200∼500mm(Wide-Tele)
Aperture		F1.8∼F2.7
Iris Control		Auto
Video		Max. Image Resolution	1920x1080
	Frame Rate	60Hz: 30fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
	Secondary Stream	60Hz: 30fps@(704x576, 640x480, 640x360, 352x288)50Hz: 25fps@(704x576, 640x480, 640x360,
	Tertiary Stream	60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
	Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
	Video Bit Rate	16Kbps∼16Mbps (CBR/VBR adjustable)
	Privacy Masking	Up to 28 areas(24 mask areas and 4 mosaic areas)
	ROI	Up to 8 areas
	Image Settings	Saturation/Brightness/Contrast/Sharpness
	Interface	Ethernet	1*RJ45 10M/100M Ethernet Port
Audio Interface		Built-in Microphone
Alarm I/O		1/1(Multi-interface Version)
Network		Network Storage	NAS(Support NFS, SMB/CIFS), ANR
	Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
	Audio	Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate		8/16/32/44.1/48KHz
Audio Bit Rate		16~256kbps
Two-way Audio		N/A
Intelligent Analytics		Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
	Face Detection	Detect and capture faces, get real-time snapshots
	People Counting& Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
	System	Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function		Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support		Yes, Voice&Video-over-IP
Event Trigger		Motion Detection, Network Disconnection, Audio Alarm, etc.; Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.(Multi-interface Version)
Event Action		FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.; FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.(Multi-interface Version)
System Compatibility		ONVIF Profile G & Q & S & T, API
General		Working Temperature	-40℃∼60℃
	Working Humidity	0∼90%(Non-condensing)
	Power Supply	PoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version)
	Power Consumption	5.5W MAX 6.5W MAX (With IR on)
	Weather Proof	Up to IP67-rated for weather-resistant performance
	Housing	Vandal-proof IK10-rated Metal Housing / Up to IP67-rated for Weather-resistant Performance
	Weight	7800g
	Dimensions	Φ130mmX115mm
	Warranty	3/5 Years

Referencia MS-C5375-FPD

Ficha técnica

Lentes: 2.7~13.5mm
Distancia IR: 50 mts
Estructura: Mini Domo
Resolución: 5Mp 2592x1944

Descargas

Ficha Técnica

Milesight-AI-AF Motorizado-Mini-Domo-IP-NDAA-Datasheet

Descargas (1.2MB)
