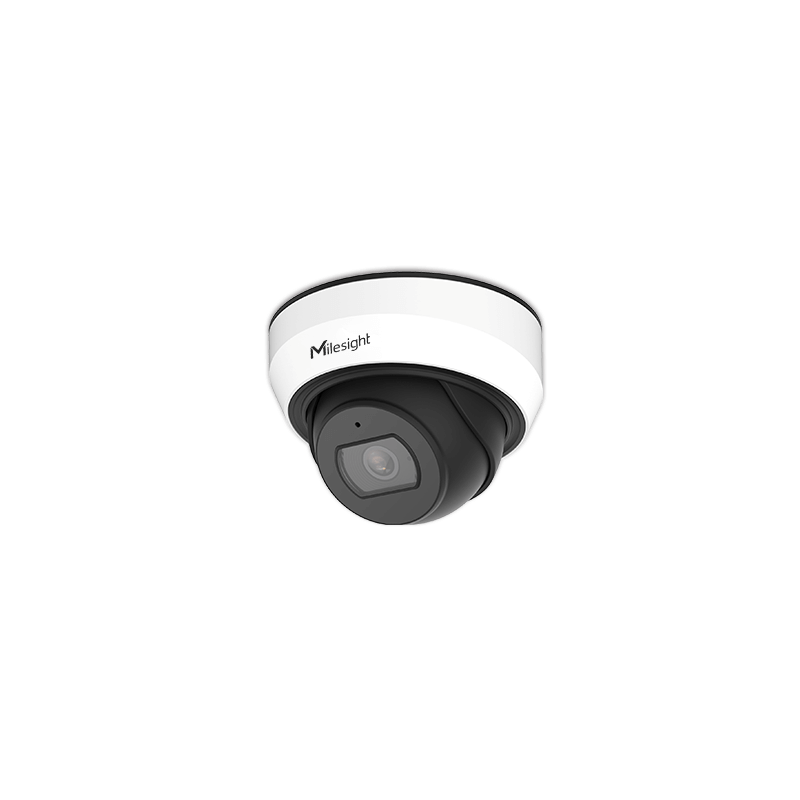

MS-C2975-RFPD MINIDOMO AF MOTORIZADO
- Cámara mini domo con Inteligencia Artificial. AF motorizado
- 2Mp · AI · 120dB Super WDR · 0.005Lux Starlight · Distancia IR de 50 m · Lente 2.7~13.5mm ·Tecnología Smart IR II · Mapa de calor · IP67 e IK10 · Diseño mecánico de 3 ejes · Micrófono avanzado incorporado · Fácil instalación y ajuste · 60FPS
- Análisis de video con IA.
- Conteo de personas
- Detección de caras
- Mapa de calor avanzado
- Última tecnología LED IR
- Diseño único para una fácil instalación
- Soporte SIP/VoIP
Conteo de personas
El conteo de personas de alta precisión y en tiempo real basado en el algoritmo de IA, con informes estadísticos para un análisis más detallado, ayuda a tomar decisiones rápidas sobre la gestión de la seguridad y aumenta la eficiencia operativa del negocio.
| Camera | Name | 2MP AI AF Motorized Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS | |
| Min. Illumination | Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.8, B/W: 0Lux with IR on | |
| WDR | 120dB Super WDR | |
| Shutter Time | 1/100000s∼1s | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| IR Distance | Up to 50m | |
| S/N | >55dB | |
| Lens | Lens | 2.7~13.5mm, |
| Field of View | H111°∼H48°/D130°∼D55°/V60°∼V27° | |
| Focus Control | Auto/Manual | |
| Minimum Working Distance | 200∼500mm(Wide-Tele) | |
| Aperture | F1.8∼F2.7 | |
| Iris Control | Auto | |
| Video | Max. Image Resolution | 1920x1080 |
| Frame Rate | 60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
|
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
|
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
|
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) | |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) | |
| ROI | Up to 8 areas | |
| Image Settings | Saturation/Brightness/Contrast/Sharpness | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio Interface | Built-in Microphone | |
| Alarm I/O | 1/1(Multi-interface Version) | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | N/A | |
| Intelligent Analytics | Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection | Detect and capture faces, get real-time snapshots | |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc.; Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.(Multi-interface Version) | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.; FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.(Multi-interface Version) | |
| System Compatibility | ONVIF Profile G & Q & S & T, API | |
| General | Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) | |
| Power Supply | PoE(802.3af)/DC 12V±10% | |
| Power Consumption | 6W MAX, 8W MAX (With IR on) | |
| Weather Proof | Up to IP67-rated for weather-resistant performance | |
| Housing | Vandal-proof IK10-rated metal housing | |
| Weight | 620g | |
| Dimensions | Φ108mmX96.5mm | |
| Warranty | 3/5 Years |
MS-C2975-RFPD
Ficha técnica
- Lentes
- 2.7~13.5mm
- Distancia IR
- 50 mts
- Estructura
- Mini Domo
- Resolución
- 2Mp 1920x1080
- Cámara mini domo con Inteligencia Artificial. AF motorizado
- 2Mp · AI · 120dB Super WDR · 0.005Lux Starlight · Distancia IR de 50 m · Lente 2.7~13.5mm ·Tecnología Smart IR II · Mapa de calor · IP67 e IK10 · Diseño mecánico de 3 ejes · Micrófono avanzado incorporado · Fácil instalación y ajuste · 60FPS
- Análisis de video con IA.
- Conteo de personas
- Detección de caras
- Mapa de calor avanzado
- Última tecnología LED IR
- Diseño único para una fácil instalación
- Soporte SIP/VoIP
