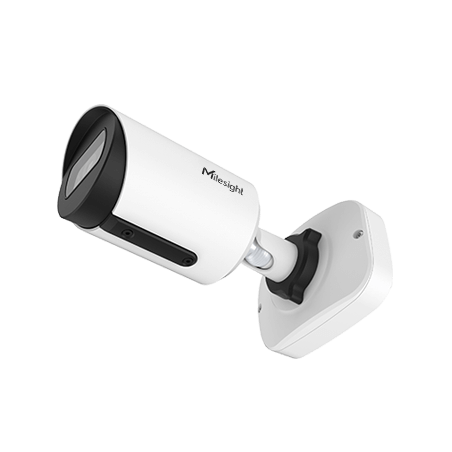

MS-C5364-PD 5Mp MiniBullet Antivandálica

Cámara mini bullet antivandálica con Inteligencia Artificial.
5Mp · AI · 120dB Super WDR · 0.008Lux Starlight · Distancia IR de 30 m · 60 fps · Tecnología Smart IR II · Mapa de calor · IP67 · IK10 · Soporte de 3 ejes · Interfaces versátiles · Diseño de protección solar · Caja de conexiones integrada · PoE
Análisis de video con IA.
Conteo de personas
Detección de caras
Mapa de calor avanzado
Última tecnología LED IR
Diseño único para una fácil instalación
Soporte SIP/VoIP
Cumple estándar NDAA

Mini bullet inimitable

La cámara IP Mini Bullet a prueba de vándalos con IA se rediseñó manteniendo el estilo de Milesight. El peso y el tamaño se han reducido considerablemente de 765 g a 450 g y de 76 mm x 208 mm a 64 mm x 160 mm respectivamente, lo que convierte a la cámara en una verdadera bullet MINI sin comprometer la funcionalidad.

Camera	Name	5MP AI Vandal-proof Mini Bullet Network Camera
	Image Sensor	1/2.8" Progressive Scan CMOS
	Min. Illumination	Color: 0.005Lux @F1.2, Color: 0.008Lux @F1.6, B/W: 0Lux with IR on
	WDR	120dB Super WDR
	Lens	2.8mm/ 4mm/ 6mm @F1.6
	Field of View	H105°/D131°/V78°(2.8mm), H86°/D108°/V63°(4mm), H52°/D63°/V40°(6mm)
	Shutter Time	1/100000s∼1s
	Day/Night Mode	Day/Night/Auto/Customize/Schedule
	IR Distance	Up to 30m
	S/N	>55dB
	Video	Max. Image Resolution	2592x1944
Frame Rate		60Hz: 30fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream		60Hz: 30fps@(704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream		60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video Compression		H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate		16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking		Up to 24 areas
ROI		Up to 8 areas
Image Settings		Saturation/Brightness/Contrast/Sharpness
Interface		Ethernet	1*RJ45 10M/100M Ethernet Port
Interface	Network	Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols		IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics		Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Intelligent Analytics	System	Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function		BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support		Yes, Voice&Video-over-IP
Event Trigger		Motion Detection, Network Disconnection, etc.
Event Action		FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility		ONVIF Profile G & Q & S & T, API
General		Working Temperature	-40℃∼60℃
	Working Humidity	0∼90%(Non-condensing)
	Power Supply	PoE(802.3af)
	Power Consumption	3.5W MAX, 5.4W MAX (With IR on)
	Weather Proof	Up to IP67-rated for weather-resistant performance
	Housing	Vandal-proof IK10-rated metal housing
	Weight	610g(Junction Box Version) / 450g(Cable Out Version)
	Dimensions	97mmX74mmX180mm(Junction Box Version) / 64mmX64mmX160mm(Cable Out Version)
	Warranty	3/5 Years

Referencia MS-C5364-PD

Ficha técnica

Lentes: 2,8mm
4mm
6mm
Distancia IR: 30 mts
Estructura: Mini Bullet
Resolución: 5Mp 2592x1944

Descargas

Ficha Técnica

Mini Bullet, antivandálica, IA, PoE, NDAA, 2-5-8Mp

Descargas (1.16MB)
