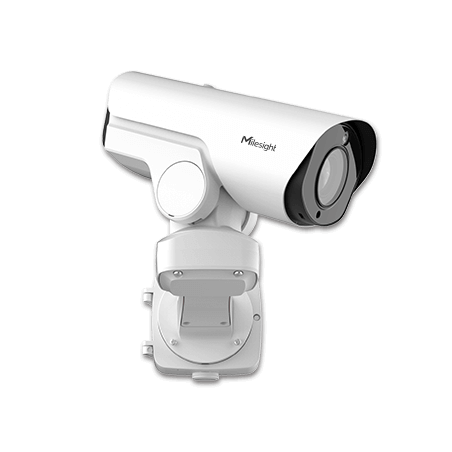

MS-C5367-X12PE 12X 5MP PTZ BULLET
Cámara PTZ Bullet AI 12X PTZ, sensor 1/2.8"
5MP · AI · Zoom óptico 12X · 3 en 1 Super WDR Pro · 0.008Lux Ultra Low-light · IP66 · Seguimiento automático PTZ · Posicionamiento 3D · Detección de movimiento PTZ · 30 fps · Lente 5.3~64mm · IR 180mts
- Análisis de video con IA.
- Conteo de personas
- Detección de caras
- Última tecnología LED IR
- Diseño único para una fácil instalación
- Soporte SIP/VoIP
- LED blanco inteligente
- Seguimiento automático de PTZ
- Posicionamiento 3D
- Desempañado Integral
Motor PTZ de nueva generación
Se adopta un motor de nueva generación con un sofisticado diseño de transmisión por engranajes planetarios para garantizar un giro constante, lo que garantiza su rendimiento robusto y proporciona una operación de giro e inclinación confiable.
| Camera | Name | 5MP AI 12X PTZ Bullet Plus Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS | |
| Min. Illumination | Color: 0.005Lux @F1.2, Color: 0.008Lux @F1.5, B/W: 0Lux with IR on | |
| WDR | 120dB Super WDR | |
| Shutter Time | 1/100000s∼1s | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| Digital Zoom | 16X | |
| S/N | >55dB | |
| Lens | Focal Length | 5.3∼64mm, 12X Optical Zoom |
| Zoom Speed | Approx 6s(Wide-Tele) | |
| Field of View | H55°∼H3°/D68°∼D4°/V42°∼V2° | |
| Focus Control | Auto/Semi-Auto/Manual | |
| Minimum Working Distance | 1000/1500mm (Wide/Tele) | |
| Aperture | F1.5∼F3.5 | |
| Iris Control | Auto | |
| PTZ | Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼60°/s, Pan Preset Speed: 60°/s |
| Tilt Range/Tilt Speed | -45°∼30°/ Tilt Manual Speed: 0.1°∼30°/s, Tilt Preset Speed: 30°/s | |
| Proportional Zoom | Support | |
| Preset Quantity | 300 | |
| Patrol | 8 Patrols, up to 48 presets each patrol | |
| Pattern | 4 Patterns | |
| Auto Tracking | Support | |
| Power Off Memory | Support | |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position | |
| IR | Irradiation Distance | Up to 180m |
| Video | Max. Image Resolution | 2592x1944 |
| Frame Rate | 60Hz: 30fps@(2592x1944), 45fps@(2048x1536),60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944), 45fps@(2048x1536),50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
|
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
|
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
|
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) | |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) | |
| ROI | Up to 8 areas | |
| Image Settings | Saturation/Brightness/Contrast/Sharpness | |
| Web Access | Support IE/Firefox/Chrome/Safari Browser | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | Support | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 | |
| Alarm I/O | 1/1 | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Intelligent Analytics | Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection | Detect and capture faces, get real-time snapshots | |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. | |
| System Compatibility | ONVIF Profile G & Q & S & T, API | |
| General | Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) | |
| Power Supply | PoE (802.3at) / DC 12V/3A±10% | |
| Power Consumption | 12W MAX, 23W MAX(With IR on) | |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance | |
| Dimensions | 110mmX337mmX220mm | |
| Weight | 2.9Kg | |
| Warranty | 2 Years/3 Years(Optional) |
MS-C5367-X12PE
Ficha técnica
- Lentes
- 5.3~64mm
- Distancia IR
- 180 mts
- Estructura
- PTZ Bullet
- Resolución
- 5Mp 2592x1944
Cámara PTZ Bullet AI 12X PTZ, sensor 1/2.8"
5MP · AI · Zoom óptico 12X · 3 en 1 Super WDR Pro · 0.008Lux Ultra Low-light · IP66 · Seguimiento automático PTZ · Posicionamiento 3D · Detección de movimiento PTZ · 30 fps · Lente 5.3~64mm · IR 180mts
- Análisis de video con IA.
- Conteo de personas
- Detección de caras
- Última tecnología LED IR
- Diseño único para una fácil instalación
- Soporte SIP/VoIP
- LED blanco inteligente
- Seguimiento automático de PTZ
- Posicionamiento 3D
- Desempañado Integral
